Name: Silicone Rubber
SKU: 14021

Silicone Rubber

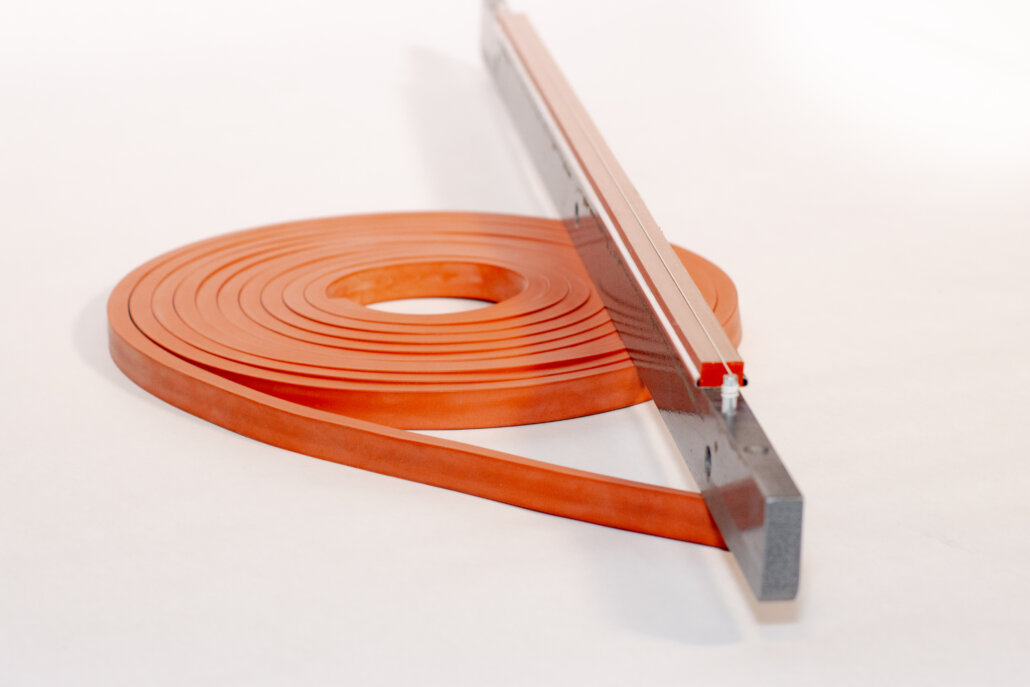

Silicone rubber for impulse heat sealers and other industrial applications, providing a heat-resistant, compressible surface for repeated cycles.

40 durometer silicone rubber is stocked in sizes commonly used on Vertrod and Therm-O-Seal heat sealers. This medium-soft rubber provides constant compression against the sealing bar during operation.

Stocked sizes are available in pre-cut pieces or rolls. Additional sizes and durometers are available by the roll upon request.

Available Silicone Rubber Sizes

Thickness	Width
1/32″	15/16″
1/16″	15/16″
3/8″	5/16″, 5/8″, 3/4″, 7/8″, 1″

Description

Common Vertrod & Therm-O-Seal Silicone Rubber Part Numbers

Seal Length	Part Number	Description
14″	P311-9004	Silicone Rubber, 5/16″ × 3/8″ × 15″
14″	P311-9041	Silicone Rubber, 5/8″ × 3/8″ × 15″
20″	P311-9011	Silicone Rubber, 5/16″ × 3/8″ × 21″
20″	P311-9059	Silicone Rubber, 5/8″ × 3/8″ × 21″
24″	P311-9012	Silicone Rubber, 5/16″ × 3/8″ × 25″
24″	P311-9065	Silicone Rubber, 5/8″ × 3/8″ × 25″
30″	P311-9013	Silicone Rubber, 5/16″ × 3/8″ × 31″
	P311-25593	Silicone Rubber, 5/8″ × 3/8″ × 31″
	P311-25856	Silicone Rubber, 7/8″ × 3/8″ × 31″
36″	P311-9014	Silicone Rubber, 5/16″ × 3/8″ × 37″
	P311-9063	Silicone Rubber, 5/8″ × 3/8″ × 37″
	P311-26502	Silicone Rubber, 7/8″ × 3/8″ × 37″
48″	P311-9017	Silicone Rubber, 5/8″ × 3/8″ × 49″
60″	P311-9026	Silicone Rubber, 5/8″ × 3/8″ × 61″
60″	P311-54520	Silicone Rubber, 7/8″ × 3/8″ × 61″
72″	P311-9027	Silicone Rubber, 5/8″ × 3/8″ × 73″
72″	P311-25861	Silicone Rubber, 7/8″ × 3/8″ × 73″
84″	P311-9028	Silicone Rubber, 5/8″ × 3/8″ × 85″
84″	P311-25844	Silicone Rubber, 7/8″ × 3/8″ × 85″
96″	P311-9029	Silicone Rubber, 5/8″ × 3/8″ × 97″
100″	P311-9270	Silicone Rubber, 5/8″ × 3/8″ × 101″
120″	P311-9030	Silicone Rubber, 5/8″ × 3/8″ × 121″
120″	P311-9033	Silicone Rubber, 7/8″ × 3/8″ × 121″

Note: Silicone rubber is typically supplied 1″ longer than the seal length. Some Vertrod and Therm-O-Seal models may use silicone rubber approximately 1/2″ longer than the seal length.

Features of Silicone Rubber:
