Heat Sealing Element Drawings
Replacing heat sealing elements should not require long lead times or excessive OEM pricing. We manufacture replacement and custom heating elements for a wide range of impulse heat sealers with faster turnaround times and lower costs.
Below are reference drawings for identification and sizing purposes and can be used when matching or replacing existing heating elements. All heating elements are manufactured using Nichrome 80.
Heating Element with Tabs
Reference drawings for flat nichrome heating elements with mounting tabs used in impulse heat sealing applications. Custom or non-standard mounting tabs can also be manufactured from existing samples or customer drawings.
Single Hole Tab
Dual Hole Tab

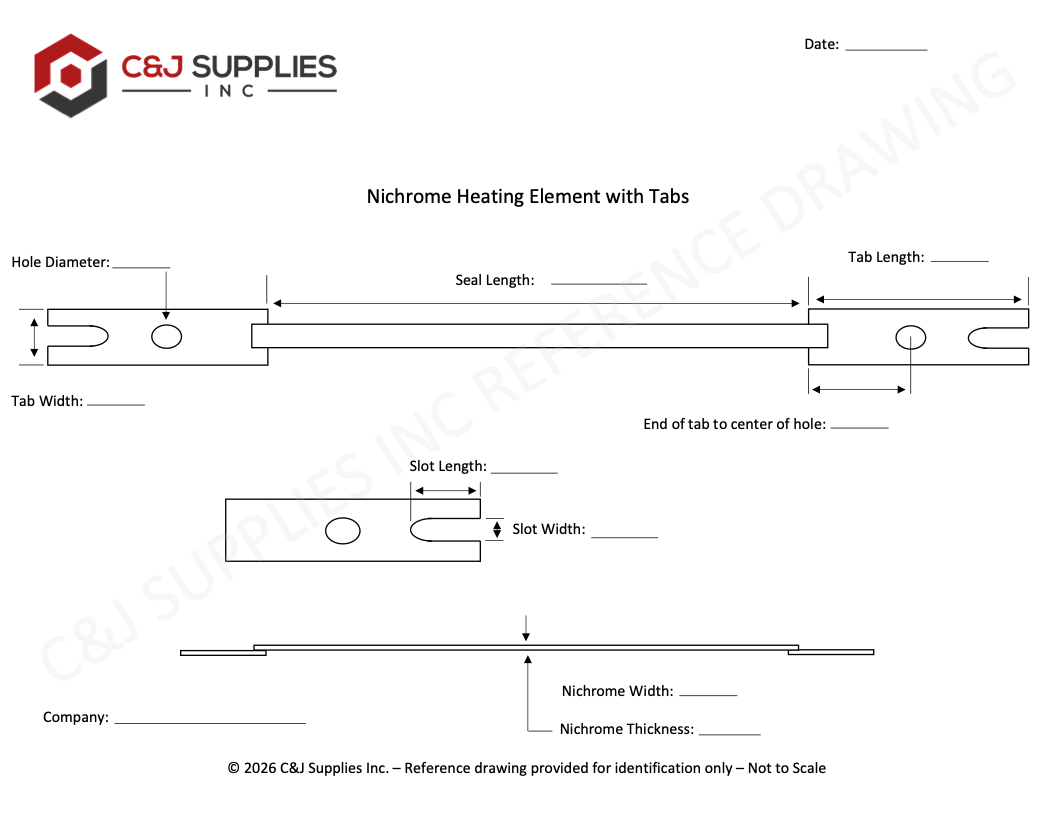

Slot & Hole Tab
Vertrod / Therm-O-Seal Heating Elements
Reference drawings for heating elements compatible with Vertrod and Therm-O-Seal heat sealers using single or dual phenolic terminal blocks.
Standard Tab

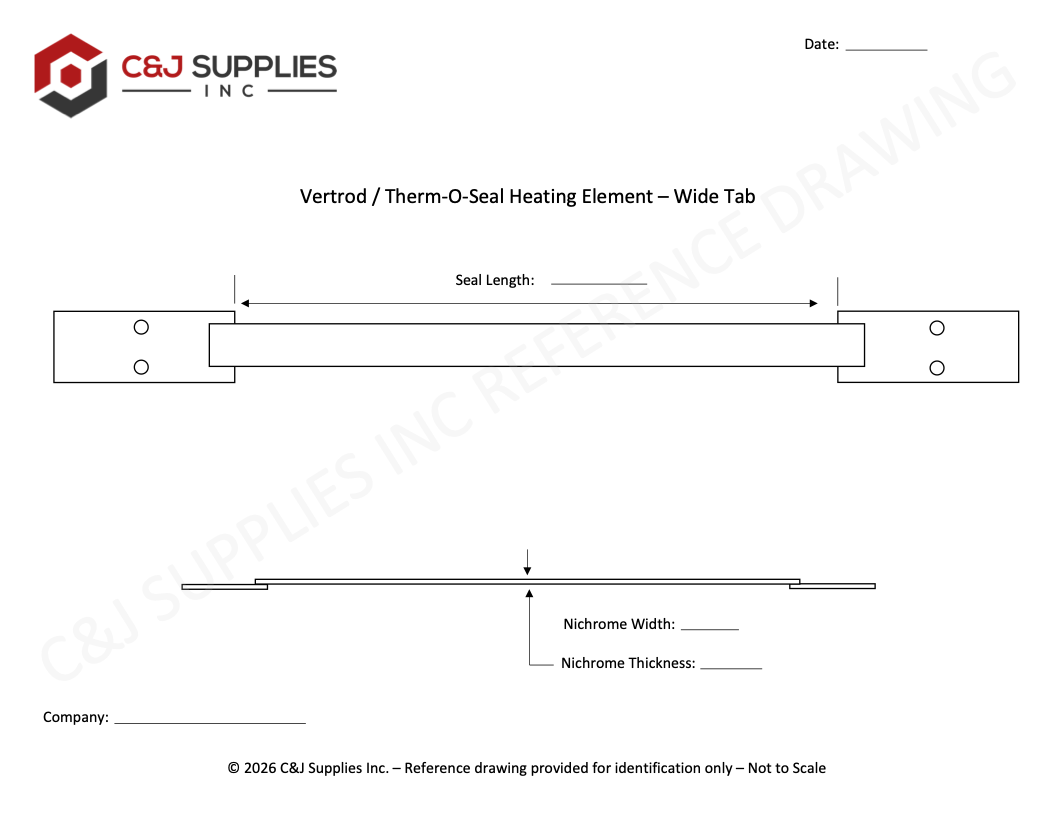

Wide Tab
Flat Ribbon Heating Elements
Reference drawings for flat ribbon heating elements used in impulse heat sealers, including bare ribbon and hole-punched ribbon designs.
Flat Ribbon Heating Element
Flat Ribbon Heating Element with Holes
Copper Plated Elements
Reference drawings for copper plated nichrome heating elements used in impulse heat sealers.

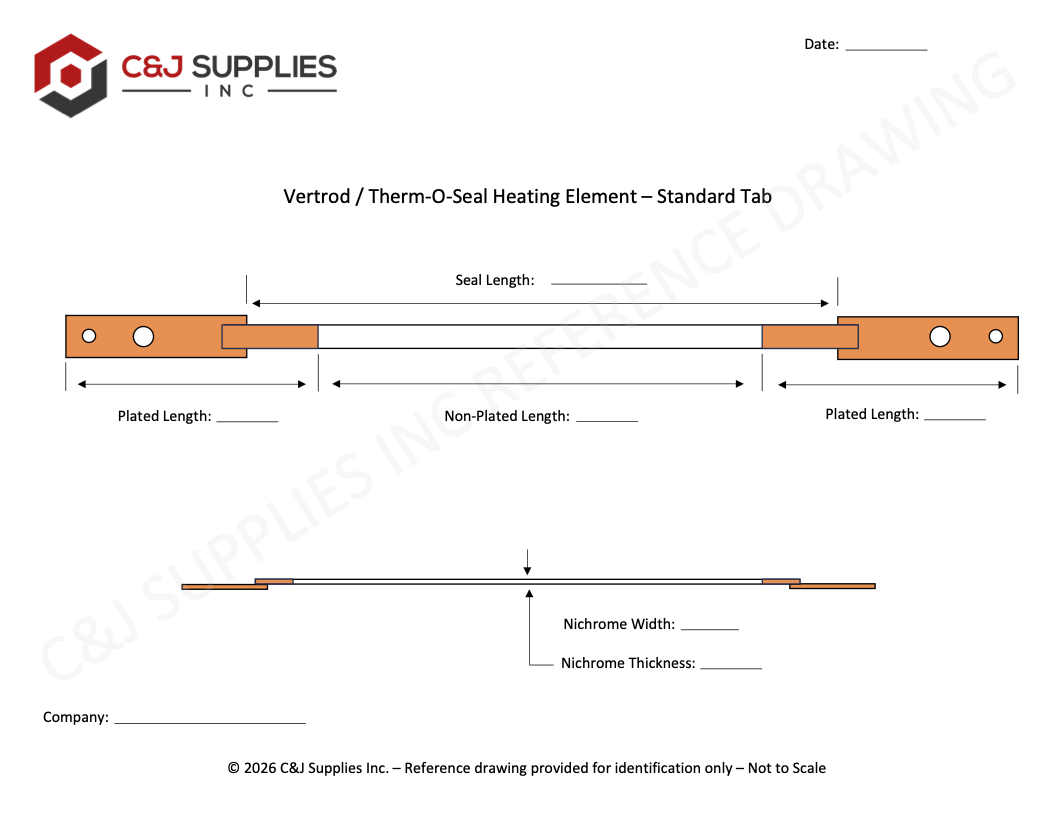

Vertrod & Therm-O-Seal Standard Tabs

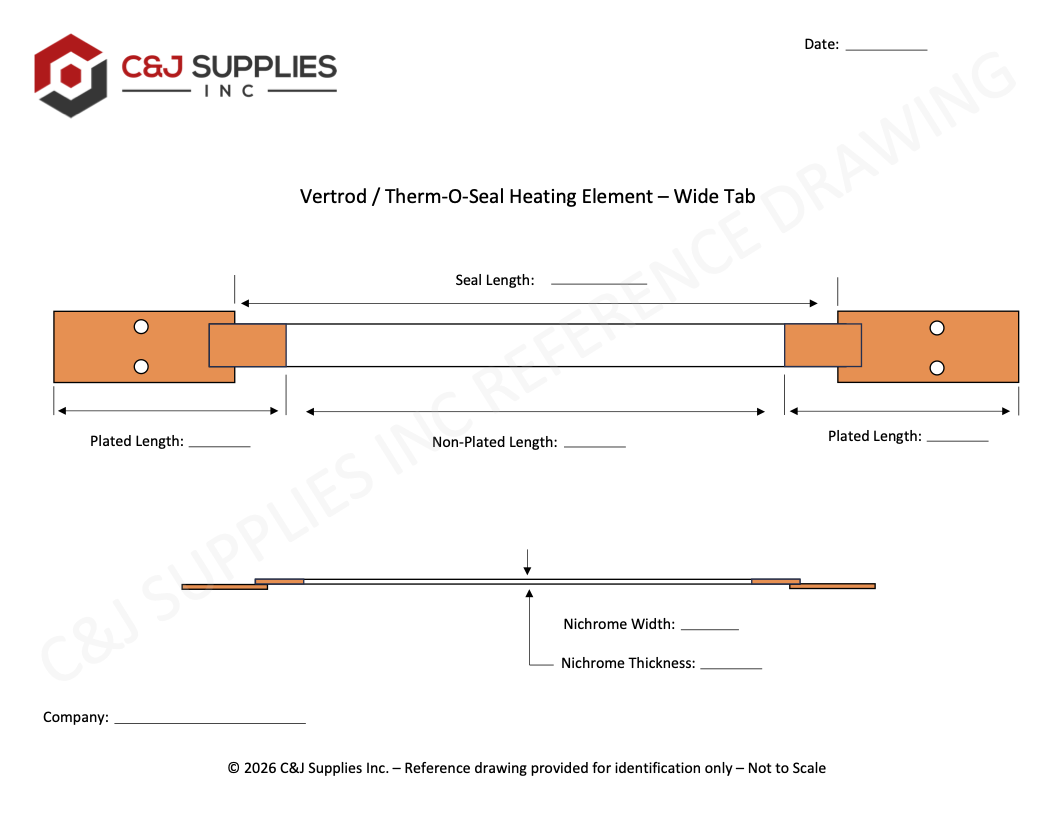

Vertrod & Therm-O-Seal Wide Tabs

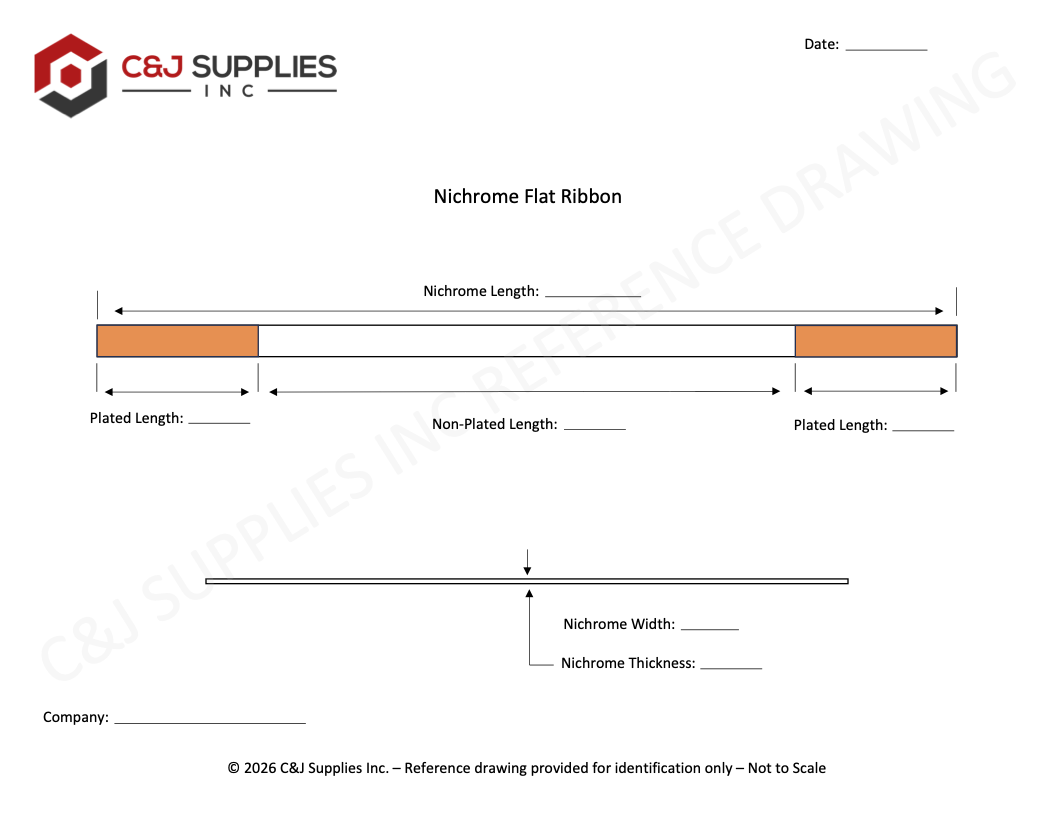

Flat Ribbon Element

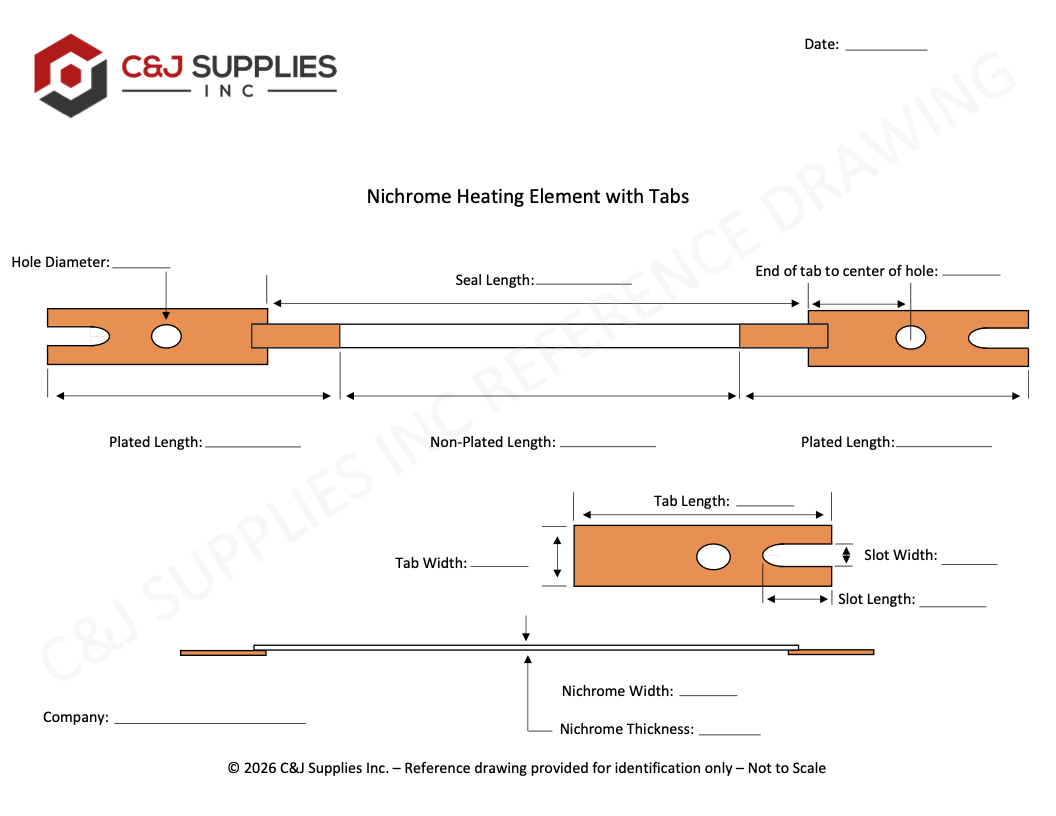

Slot & Hole Tab
If you do not see a heating element that matches your requirements, contact us today for assistance with replacement or custom heat sealing elements. Let us help you reduce downtime, lower replacement costs, and keep your heat sealer running properly.
Vertrod and Therm-O-Seal are trademarks of their respective owners. C&J Supplies Inc. is not affiliated with or endorsed by these companies.
